ELECTRA
Slim LED floodlight for street and urban lighting
Newly arrived
![ELECTRA]()
![ELECTRA]()
Description

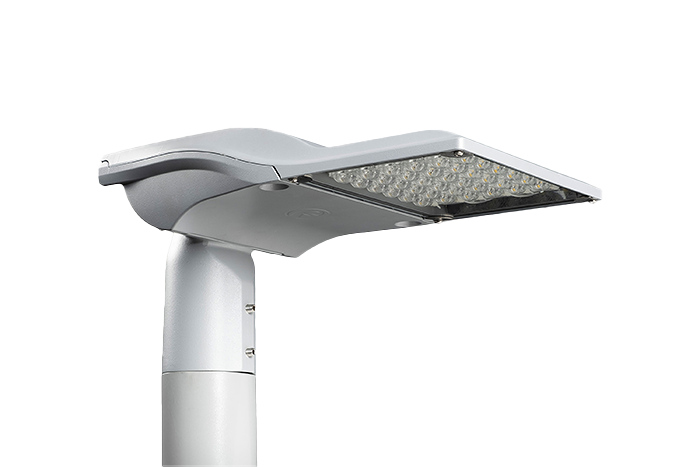

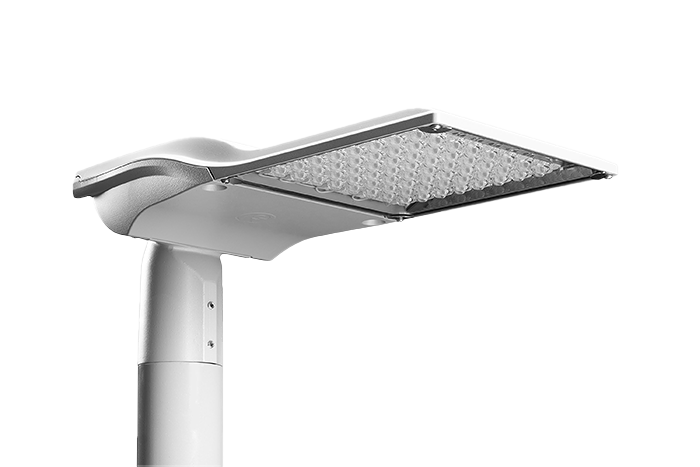

ELECTRA is a slim LED floodlight for street and urban lighting. For mounting on pole top or on wall by use of wall bracket.
ELECTRA is manufactured with luminaire housing in diecast aluminium with polyester powder coated paint finish. Supplied with tempered safety glass cover with extra high light transmission. The luminaire has anti-ageing rubber gasket and all screws are in stainless steel.
Equipped with a pressure equalisation filter to prevent the formation of condensation.
Class II on request.
ELECTRA is manufactured with luminaire housing in diecast aluminium with polyester powder coated paint finish. Supplied with tempered safety glass cover with extra high light transmission. The luminaire has anti-ageing rubber gasket and all screws are in stainless steel.
Equipped with a pressure equalisation filter to prevent the formation of condensation.
Class II on request.
Technical specifications
Accessories
- Wall bracket Ø60
Body material and colour
- Body in diecast aluminium with silver grey (RAL 9006) polyester powder coated paint finish. Supplied with 4 mm tempered safety glass cover with extra high light transmission. The luminaire has anti-ageing rubber gasket and all screws are in stainless steel.
Connection
- 1 x PG16 cable gland (cable Ø10 - 13 mm). 3 pole (HF) or 5 pole (DALI) 2.5 mm² screw terminal block in the luminaire housing.
Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland.
- 1 x PG16 cable gland (cable Ø10 - 13 mm). 3 pole (HF) or 5 pole (DALI) 2.5 mm² screw terminal block in the luminaire housing.
Driver
- Fixed output (HF) or DALI dimmable.
Light management
- This product is available with Glamox NightDim and can also be supplied with Zhaga socket for connecting communication and sensor units.
For more information see "Light control for outdoor lighting" under “Light Management”.
- This product is available with Glamox NightDim and can also be supplied with Zhaga socket for connecting communication and sensor units.
Light Source
- LED 2500 - 27 000 lumen out
Colour temperature 3000/4000 K, CRI Ra 70/80, MacAdams 3
- LED 2500 - 27 000 lumen out
Mounting
- Installation on pole with top diameter of 46-60 mm
Versions for installation on pole with top diameter of 46-76 mm on request.
Alternatively on wall by use of wall bracket.
Adjustable tilt from 0º to 20º at constant steps of 2.5º.
The wall bracket must be ordered separately.
- Installation on pole with top diameter of 46-60 mm
Optic

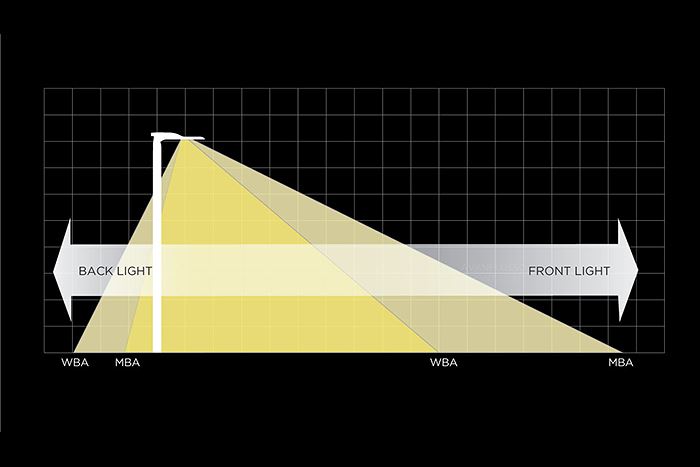

- Wide beam optic (WBA) and medium beam optic (MBA) for street and pathway lighting.
Protection against surges
- Up to 10kV.
Wind exposed surface
ELECTRA 1: 0.020 m²
ELECTRA 2: 0.022 m²
ELECTRA 3: 0.025 m²
