Fast trunking, instant illumination
LINDOX is a technical luminaire system that redefines speed, precision and sustainability in every lighting project.
At the heart of this trunking solution lies one of the fastest assembly solutions in the market, which helps you save plenty of installation time and man-hours. The automatic connection plugs at the luminaire ends and aluminium profile transition rails ensure seamless assembly. All connections between modules happen automatically, requiring only the tightening of two screws. Your lighting project will be up and running in record time.
Maximized lighting output, optimized efficiency
In addition to offering practical advantages like speed and convenience, the LINDOX system delivers outstanding lighting performance. Its modern optics solutions deliver impressive lighting parameters, including a luminous efficacy of up to 190 lm/W and an impressive lumen output of up to 10,000 lm/m, all the while ensuring low glare levels (UGR < 19).

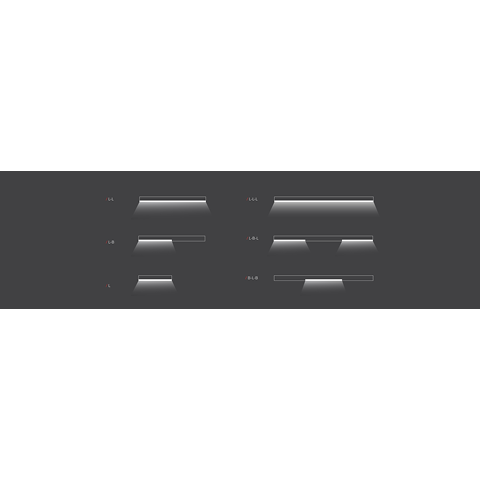

The wide range of available light distribution curves allows for plenty of design freedom while providing the right lighting parameters for various applications.
,(0.5,0.5,1,1)&format=webp)
,(0.5,0.5,1,1)&format=webp)
Easy installation
The monolithic, single-component structure of LINDOX eliminates the need to open luminaires during installation. A quick click, and the assembly is complete.

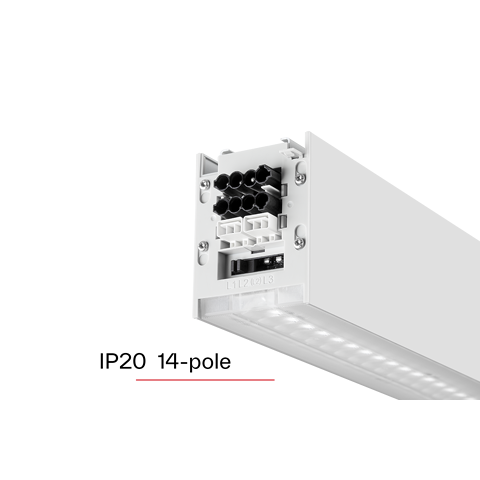

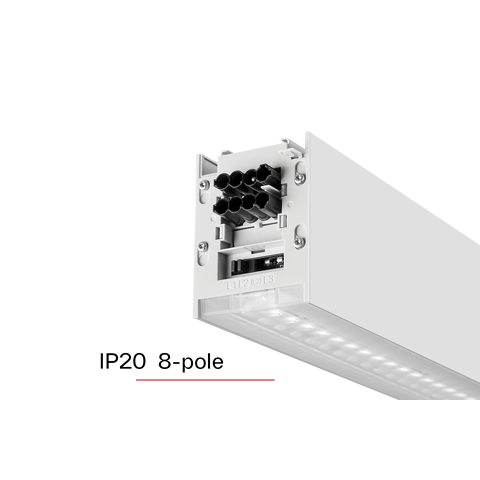

The automatic and self-guiding electrical connectors ensure precise connections, expanding your possibilities by using up to 14 power track lines.
This is complemented by the phase selector which allows for flexible phase or circuit adjustment directly on-site, reducing the variations of required separate product items by 66%.
,(0.5,0.5,1,1)&format=webp)
,(0.5,0.5,1,1)&format=webp)
Varied installation
Various mounting accessories can be used to address different on-site requirements and offer flexibility when installing pendant, chain, ceiling or T-bar systems. The grooves in the profile structure even allow additional cables to be installed and offer an ideal cable routing solution for other facility systems.
Integrated sensors for energy-efficient lighting
Upgrade your LINDOX lighting system with our advanced built-in sensor modules, that allow different communication and control.
Choose the connectivity solution that best fits your setup: Whether through Glamox Wireless Radio or Glamox Ethernet2Dali capabilities, our sensors ensure compatibility with a wide range of systems, offering a diverse range of solutions for your smart lighting needs.
,(0.5,0.5632318,1,0.8735363)&format=webp)
,(0.5,0.5,1,1)&format=webp)
,(0.5,0.6291667,1,0.7416667)&format=webp)
