O21-W
Description

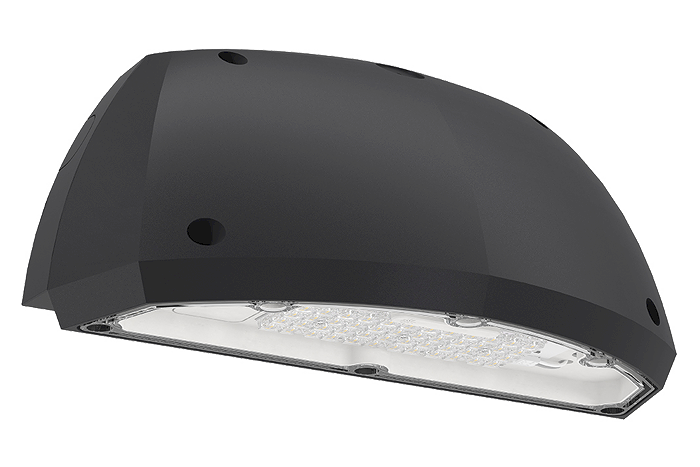

Glamox O21-W is a vandal resistant LED luminaire for wall mounting. Suitable both for residential or commercial use. Typical applications for Glamox O21-W would be outside entrance doors and around building perimeters to achieve recommended light levels and provide added building security. The luminaire housing is in diecast aluminium with polycarbonate diffuser. Features: Easy to install with rear direct cable or via side conduit entry Easy to maintain and replace with a quick electrical connector between the back mounting plate and front housing Designed solely for downward light distribution to reduce sky pollution but also achieving a wall spacing of 15m centres. One design but with a number of energy saving light and presence sensor options. Also available for integration with our ‘Glamox wireless radio system’.
Technical specifications
Light Source
LED 1100 – 3900 lumen out
Colour temperature 3000/4000K, CRI Ra 80, Macadams 3
Body material and colour
Mounting plate and body housing in diecast aluminium, painted in Polyester powder paint Colour Black (RAL9005). Bottom diffuser in impact resistant clear polycarbonate.
Optics
Available with a choice of two optics – extreme wide beam asymmetric distribution XWBA for low mounting heights and wide beam asymmetric distribution WBA for high mounting.
Connection
5 pole 2x2.5mm² push-in terminal block prepared for through wiring. Connection from mounting plate to main body housing via an integral quick-connection knife style block.
Outdoor use requires suitable round flexible cables assuring the water tightness of the membrane gland.
Integrated sensors
O21-W is available with a number of energy saving sensor options.
Daylight on/off – STAB-SEN. Unit will switch on/off at dawn/dusk (70 Lux)
Microwave presence and daylight – SMTC-SEN. Unit will switch on/off at dusk/dawn and dim to 10% on presence time-out of 5 minutes.
Glamox Radio Wireless system – CHW-SEN. PIR with wireless control and monitoring.
Emergency system
Can be supplied with emergency lighting systems – Standard E3/S, Self-test E3/ST, E3/DALI or Wireless E3/WR-D.
