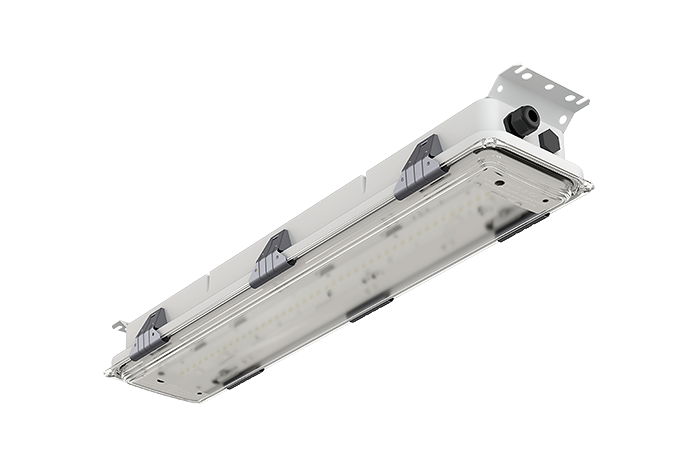

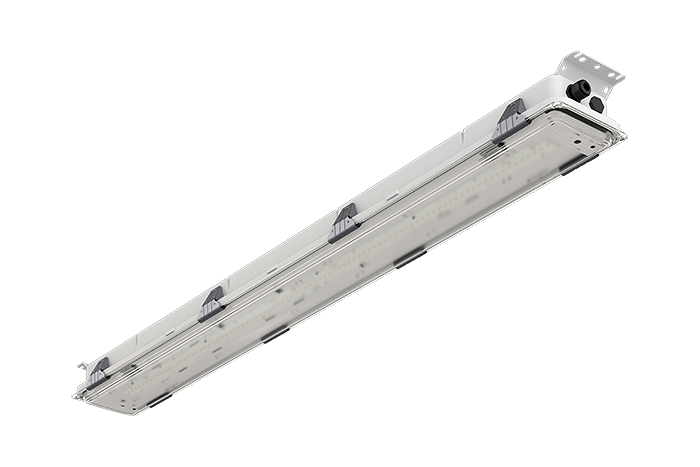

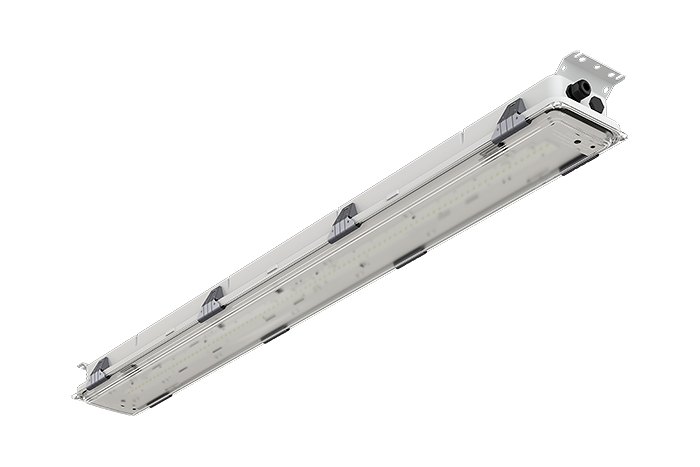

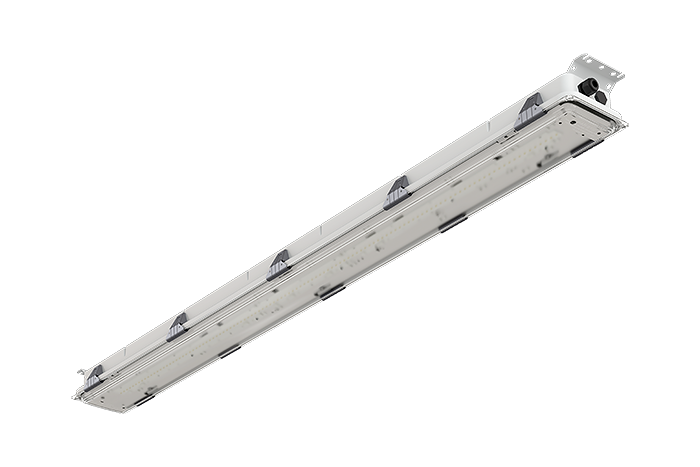

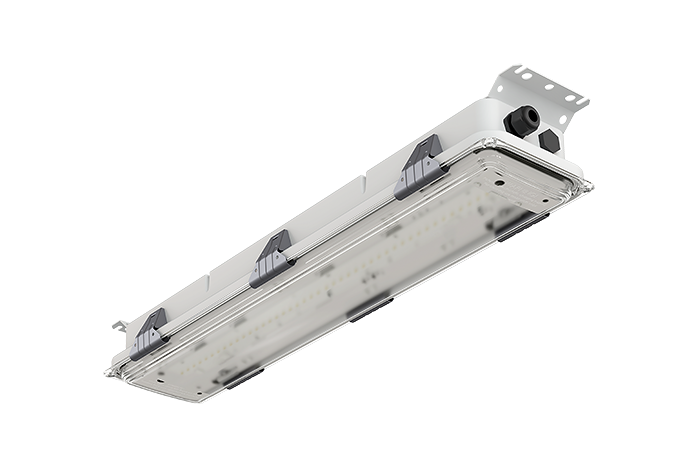

MIX G2
Explosion proof technical outdoor / indoor LED lighting for Zone 2 and Zone 22
Technical specifications
Light Source
- 2500 - 7500 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
- 2500 - 7500 lumen out
Driver
- Fixed output (HF) and DALI dimmable (10-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
- Fixed output (HF) and DALI dimmable (10-100%).
Mounting
- The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridge -, side - and vibration suspension to be mounted through the M8 hood nut. M8 hood nuts with flexible CC and other special suspensions on request.
Cable entry
- 1-4 x cable glands:
M20 polyamide (cable Ø6-12 mm)
M20 nickel plated brass (cable Ø4-12 mm)
M25 polyamide (cable Ø11-17 mm)
M25 nickel plated brass (cable Ø10-18 mm)
- 1-4 x cable glands:
Connection
- 5 pole 6 mm² screw terminal block.
Variants with 5 x 2.5 mm² through wiring.
- 5 pole 6 mm² screw terminal block.
Emergency system
- Emergency solution for 1.5 or 3 hour duration is available.
Fixed external battery box to achieve optimal working conditions.
- Emergency solution for 1.5 or 3 hour duration is available.
Accessories
- Suspension kits.
