NL95

NL95

Touch Screen Navigational Light Controller

NL95

NL95

Touch Screen Navigational Light Controller

NL95 is a programmable control and monitoring system for navigation and signal lights. Built-in software allows easy programming of lights configuration in main unit itself without requirement of external devices. A modular and scalable design makes it suitable for all ships / vessels types and sizes, with remote control feature it is possible to integrate it with ship control system.

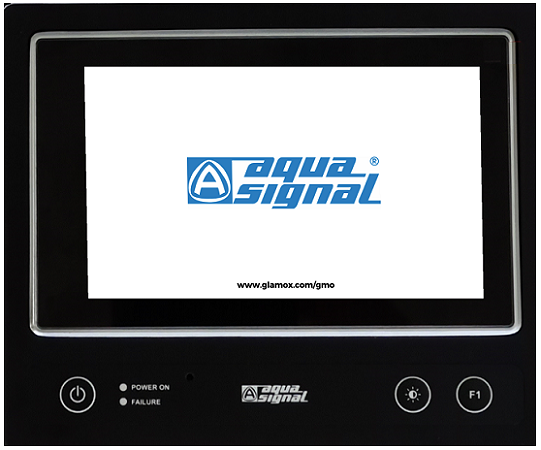

The NL95 Navigation Light Controller comes with a 7 inch and 12 Inch (diagonal) touchscreen panel.

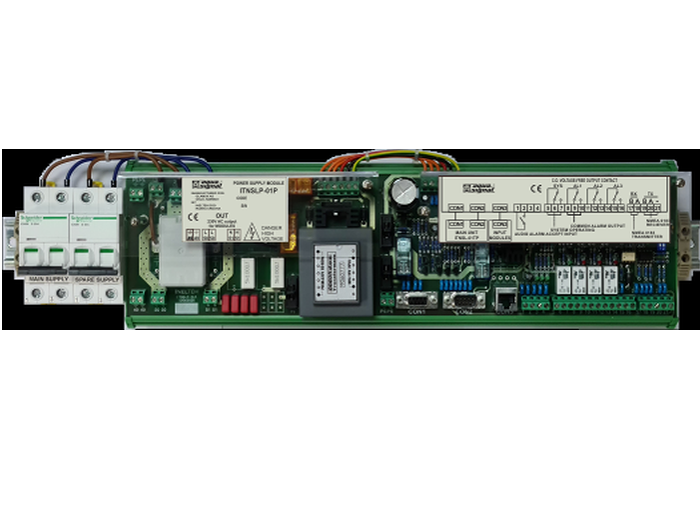

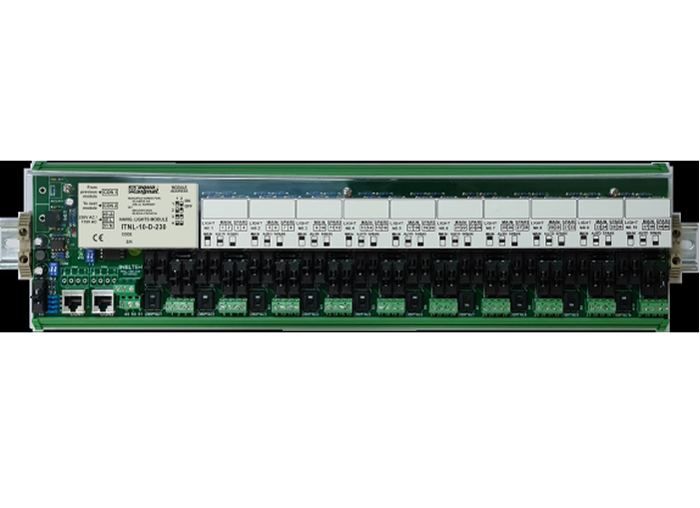

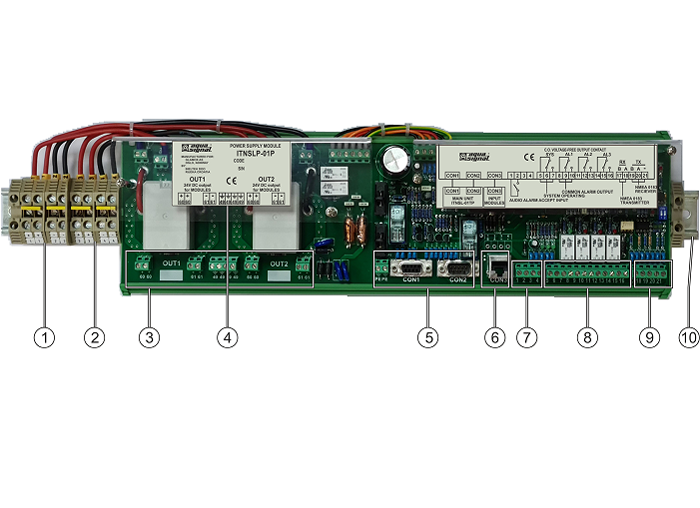

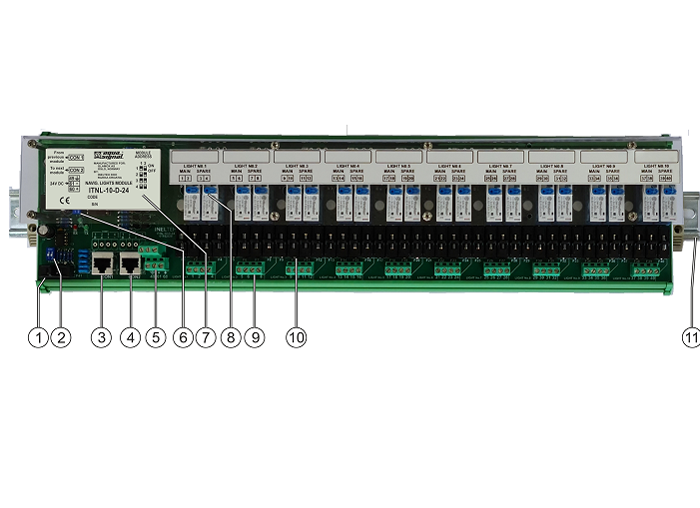

The complete unit contains of a main display with touch panel for flush mounting, input modules for lanterns connection and power supply unit for installation inside of bridge console or in technical room. The NL95 main unit is equipped with touch screen display, and runs a user-friendly and easy-to-use operating system. It is available in 230 V AC, 115 V AC, or 24 V DC versions depending on vessel main power supply.

All versions have dual power supply input modules (main and spare) with automatic change-over function. NL95 continuously monitors status of lights that are switched on and light's circuitry by checking current consumption for each individual connected navigational light or signal light. If current drops below threshold, the alarm is activated and system automatically switches to spare light (if exists), however this provides more safety. Each light input is protected by double pole fuse. Input modules are equipped with manual override activation feature which allows operation even in case of electronic failure.

NL95, in maximum configuration, controls up to 80 lights, i.e 30 double lights and 20 single or up to 50 single lights. NL95 is tested and compatible with standard bulbs and Glamox / aqua signal LED navigation lights Series 55, 60, 61, 70/70(M), 75(D), 66N(D) MIL, and 76N(D) - both Standard and Arctic variants.  In addition, NL95 is Bureau Veritas (BV), CRS, ABS and DNV certified .
