E85-R
Description
E85-R is a recessed escape route light or anti-panic emergency light system based on LED.

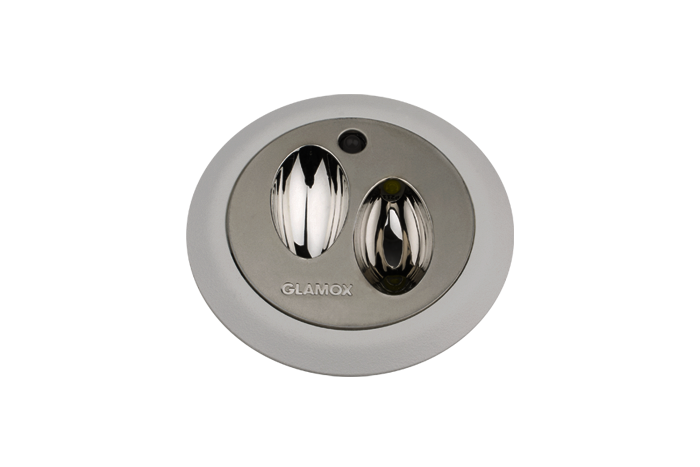

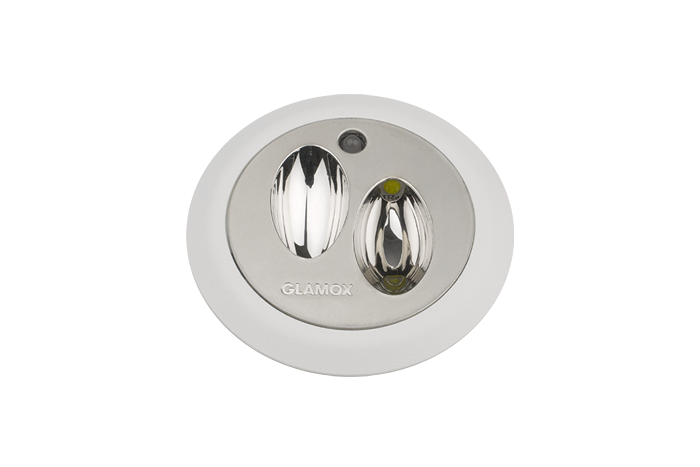

The escape route system, E85-R C, is especially designed for corridors and covers a 17 metre corridor with 1 lux in centre line.

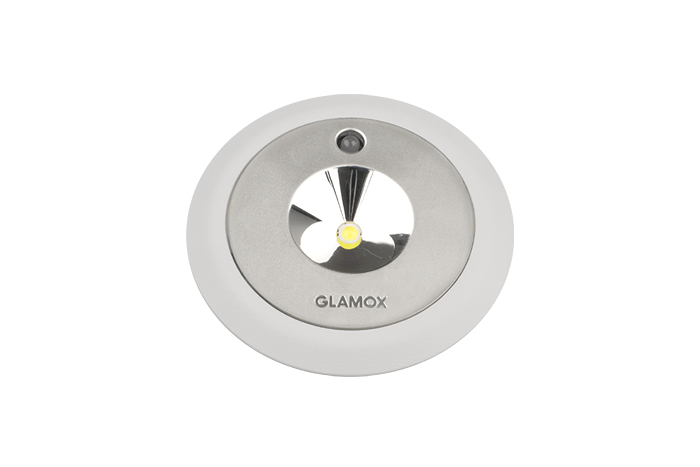

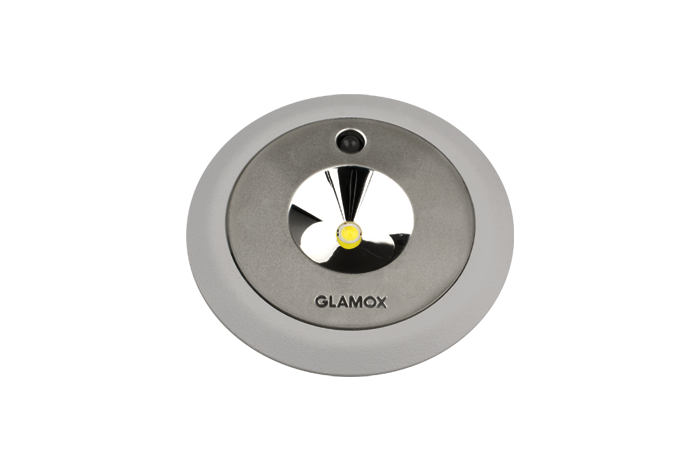

The anti-panic light, E85-R WB, have a circular wide beam light distribution that covers 8 x 8 metres with the required 0,5 lux.
Both variants can be supplied for manual, selftest and central controlled testing and monitoring. Using an environmentally friendly NiMh battery.
Technical specifications
Body material and colour
- White painted aluminium with component box in Polycarbonate.
Mounting
- For recessed mounting. Spring-locking mounting clips are included.
Connection
- A 3 or 5 pole terminal block.
Emergency system
- Supplied in standard (S), selftest (ST) or addressable (DALI) system for 1 or 3 hours duration.
Illustrations
