C52-S
Description

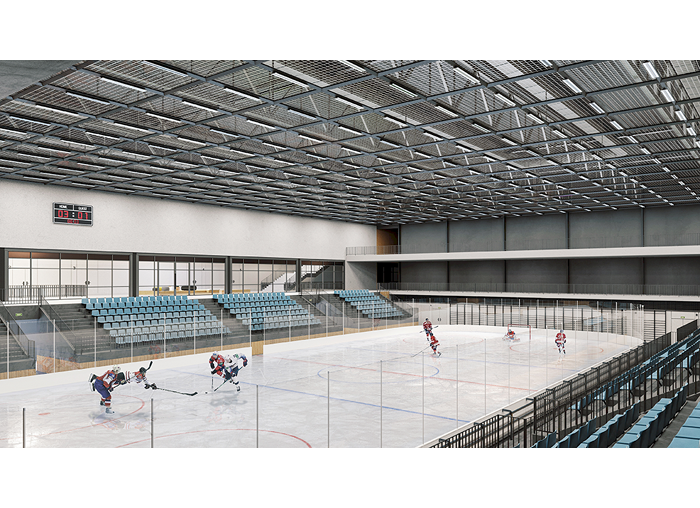

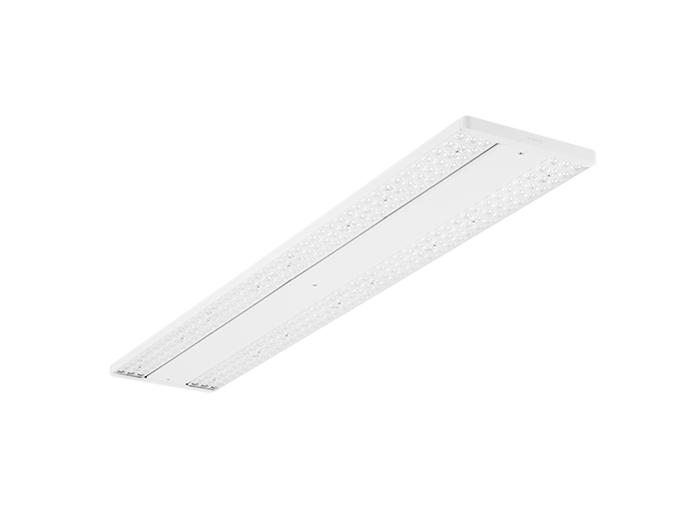

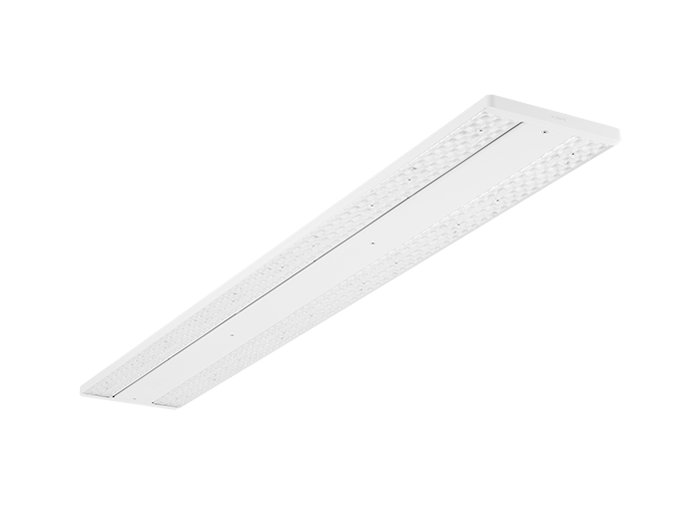

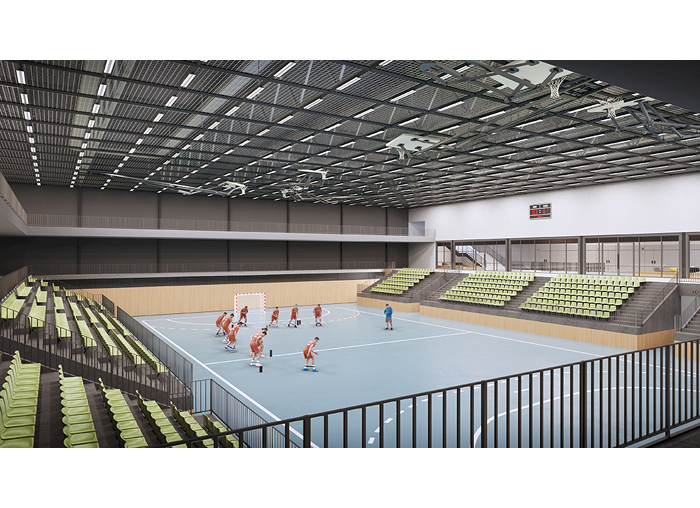

Glamox C52 is a compact luminaire with a slim yet robust housing and lens optics perfected for diverse applications. A full range of light distribution variants – wide-beam, medium-wide beam, narrow-beam and asymmetrical – makes this product a perfect fit for multi-purpose sports halls with high ceilings.
What sets this luminaire apart is the combination of an optimised luminous flux and efficacy with exceptional durability. The improved efficiency and higher lumen output are cleverly accompanied by excellent glare control, providing the proper viewing comfort for spectators and competitors alike. On top of that, it also boasts high impact resistance and has undergone a ball impact test to prove it, gaining approval according to the international DIN 57 710-13 standard.
Technical specifications
Optics

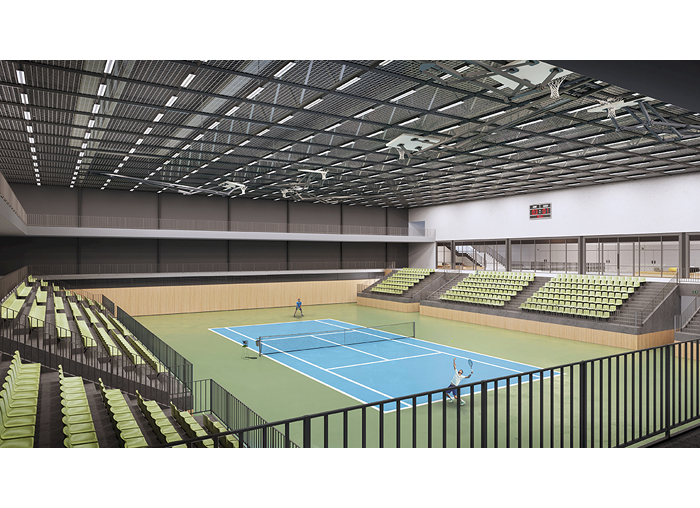

- Recommended optics application: WB - wide beam (<6m) MB - middle beam (8m - 10m) NB - narrow beam (>10m) ASY - asymmetric beam - goal area, tennis, volleyball, climbing wall
Body material and colour
- Body in white aluminium
Driver
- HF or DALI. Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C. Driver for HD-TV (<1% ripple current)
Light Source
- LED 8 000 - 24 000 lumen out Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
Mounting
- For plasterboard and T-bar ceilings use special mounting frames.
Emergency system
- Self test (ST) or DALI. 1h or 3h.
Integrated sensors

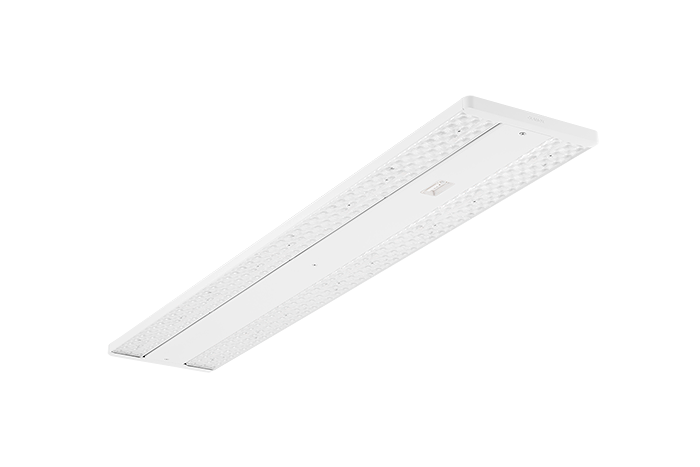

- CHW-SEN - a medium bay PIR sensor (12 m) for our Wireless Central monitoring system. MPW-SEN - a combined PIR and daylight sensor (3 m) for our Wireless ZigBee system.
