D70-R
Downlight with state of the art LED technology
Description
Glamox D70 is a downlight family with state of the art LED technology. High power LED demands a precise, ingenious and perfected product design. Our designers have focused on functionality and efficient heat management that influence the lifetime of the product and provide you with a long lasting and high quality solution.
Versatile downlight
The D70 family is applicable for several applications with its selection of different heights of the component housing, reflectors and décor options.
Freedom of planning
D70 is prepared for easy and safe connections with Linect® quick connection system. This universal system raises the level of freedom of planning and simplifies all phases in your project. To secure the downlight, D70 is being anchored firmly in the ceiling with allen key/ hexagonal bits that always accompany the product. The downlight is delivered with a dust cover for protection during the building period.
Technical specifications
Emergency system
R195 XA Can be supplied with emergency lighting systems (Standard)
IP class
IP20 from upper side.
Optic

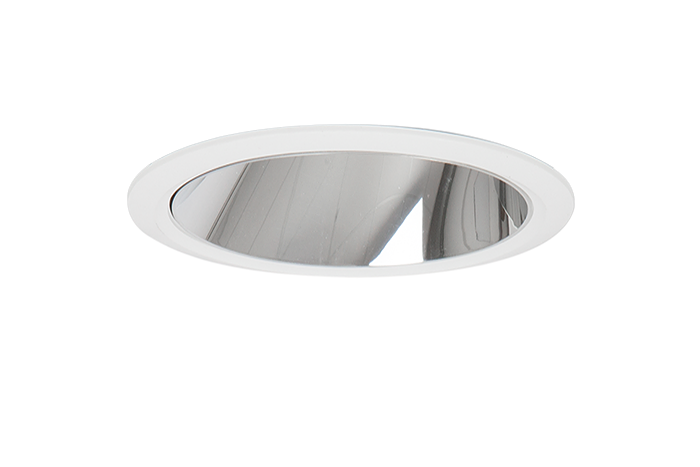

D70-R195 XA Wall Washer:XA Wall Washer reflector can be delivered in high gloss (SI).R92: Reflector can be delivered in (MB) Medium beam or (NB) Narrow beam with faceted high gloss finish
Light Source
R92: LED 700 - 900 Lumen out
R195 XA: LED 1400 - LED 3000 Lumen Out
Light source information:3000/4000 Kelvin, CRI 80, CRI 90 on request.
R195 with CCT on request, MacAdams 3.Lifetime LED:Up to 100.000h Ta25.
Body material and colour

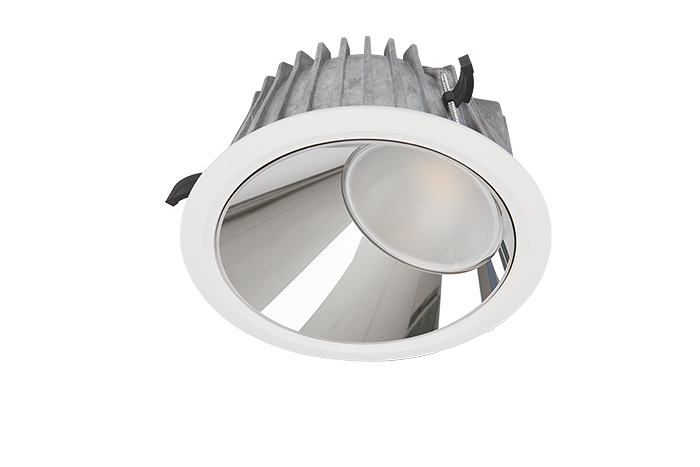

- Reflector housing in die-casted aluminium, metallised PC reflector and driver housing in polycarbonate. Trimming in white or chrome finish
Mounting
- Simple mounting by integral adjustable brackets using the supplied 3mm Allen key/ hexagonal bit
Connection
D70-R195 XA Wall Washer: 3/5 1,5 mm² mains terminal. Chord anchorage on the external driver box.
R92 3/5 pole 2,5 mm² push-in terminal block prepared for through wiring. Integrated chord anchorage in luminaire housing, suitable for a range of cable dimensions.
Driver
Fixed output (HF), DALI dimmable (100-1%). D70-R92 have variants with DALI with Dim 2 Warm (D2W) light source have dimming from 2700 – 1800 Kelvin. Driver life time up to 100,000 h/10 % (max failure) at Ta 25°C
