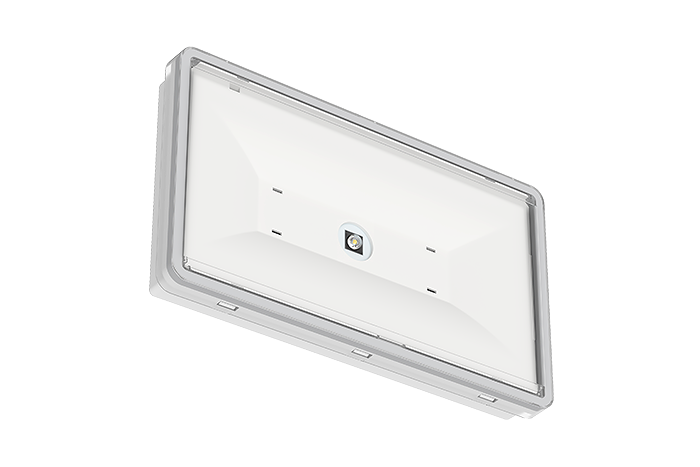

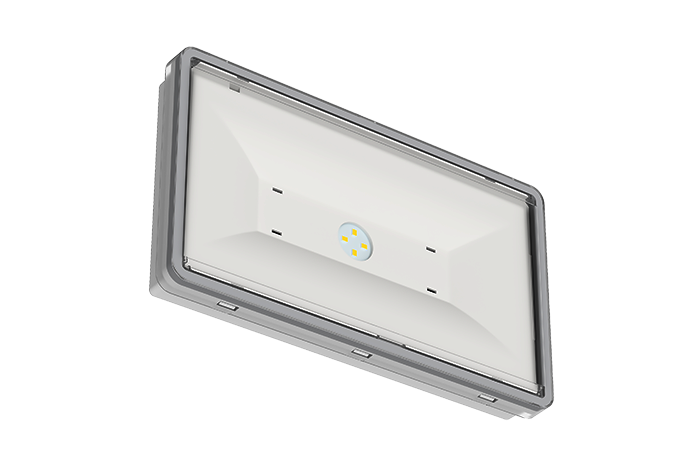

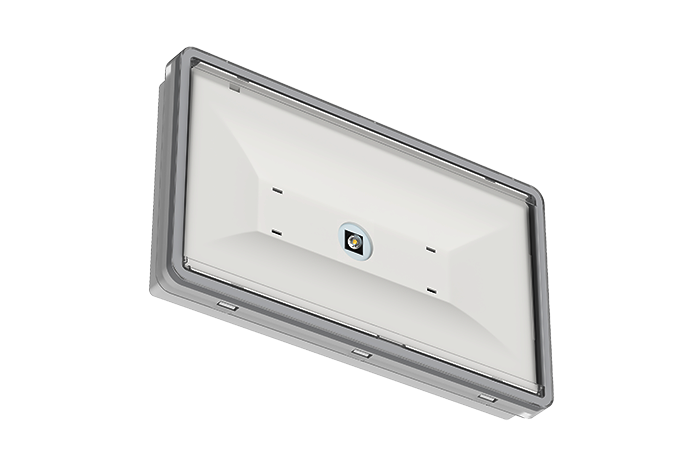

ORTUS-S

Modern and versatile emergency lighting.

A universal family of emergency lighting luminaires that combines variants for backlit pictograms as well as lighting for escape routes and points of emphasis.
The ORTUS family perfectly corresponds to the variety of requirements for emergency lighting and uses LEDs with a long useful lifetime exceeding 100,000 h.
The escape route lighting variant can be equipped with a wide range of various detailed solutions in terms of the available light sources, battery technologies, light distribution options, operating temperature ranges, etc.

Popular

A self-contained surface-mounted luminaire for emergency escape route and anti-panic lighting.

Application
1. The luminaire’s housing has high ingress protection and increased mechanical impact resistance, which makes it suitable for use in demanding spaces. It’s an excellent solution for sports facilities, shopping centres, industrial and public buildings. Its functionality has also been extended to include applications in outdoor conditions or at large mounting heights.
Emergency system
1. Available as standard (S) for manual testing, self-test (ST) for automatic testing or as an addressable (DALI) system for automatic testing, monitoring and report generating. All self-contained emergency systems are available with 1- or 3-hour backup duration. A version for Central battery supply (Z) and (ZA) are also available.
Lightsource/Optic
1. High-Power LED light source and optical systems with the following light distribution variants are available: corridor (CR), anti-panic (XWB), asymmetrical (ASY), wide-beam (WB) and narrow-beam (NR) to ensure that all emergency lighting needs can be met.
Body material and colour

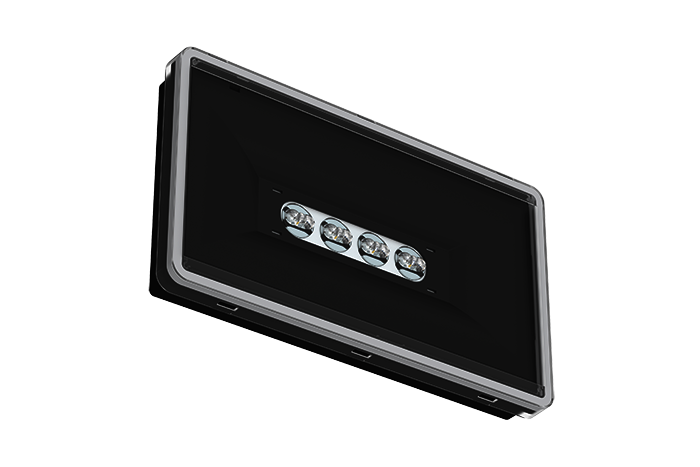

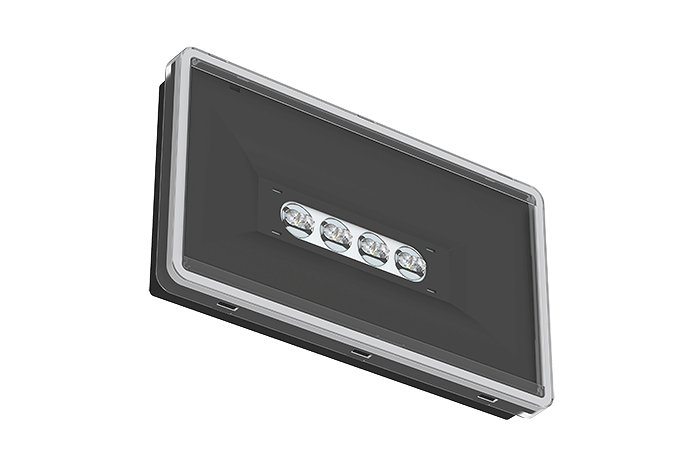

1. A white or black plastic housing made of self-extinguishing polycarbonate that withstands a flammability test at 850⁰C.

Battery
1. LiFePO4 - Lithium batteries - Several decades ago, emergency lighting was the main driving force behind the development of new battery solutions. After the introduction of electric vehicles (cars, scooters and bikes) however, all research on rechargeable batteries and almost all production is switched to modern, lithium-based technologies. Emergency lighting should have the most reliable energy source available. The intense development of lithium battery technology can serve as a guarantee of long service life, efﬁciency and savings.
Connection
1. 3- or 5- pole, 2.5 mm2 through-wiring connection terminal (except ORTUS-S 150: 5 (3) x 1 x 1.5 mm2)
Approvals
1. Emergency escape route and anti-panic lighting in accordance with the EN 1838 and EN 50172 standards; escape route emergency lighting in accordance with the EN 60598-2-22 standard.
Housing
1. The luminaire’s housing has high ingress protection and increased mechanical impact resistance, which makes it suitable for use in demanding spaces. It’s an excellent solution for sports facilities, shopping centres, industrial and public buildings. Its functionality has also been extended to include applications in outdoor conditions or at large mounting heights.
