C70-R G2
The new generation of light
Description
C70-R G2 is flexible luminaire for recessed mounting in ceilings and have a visible frame that gives it a pure design language with its uniform design.
Great flexibility
C70-R G2 is well suitable for all 15 and 24mm T-bar ceilings. For other ceiling types, a mounting frame with brackets will be available as an accessory which will cover most of the known ceiling types in the market, as well as concealed ceilings and plasterboard ceilings.

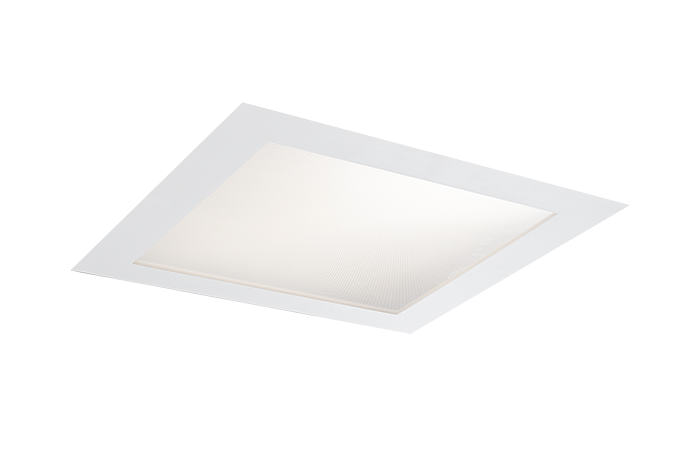

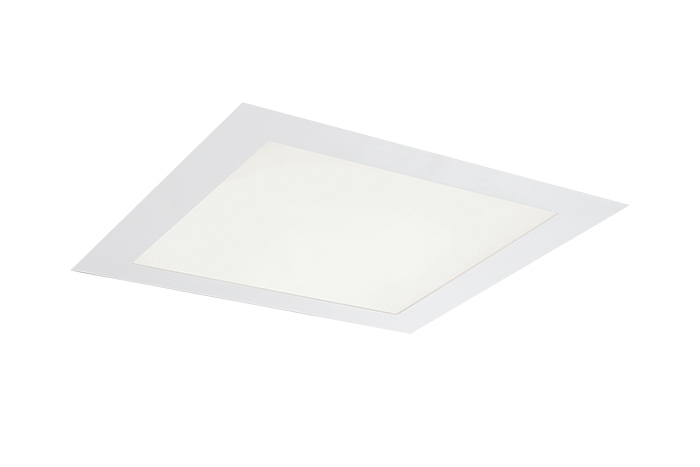

C70-R G2 is available with two different optics: Micro Prismatic (MP) or Opal (OP).
A external driver box is delivered with the luminaire. Connection and maintenance is done without opening the luminaire.
Technical specifications
Emergency system
- Standard (S), Self test (ST) or DALI. 1h or 3h.
Sensors
- This product is available with a PIR sensor type SPR-SEN with relay based ON/OFF switch or a PIR sensor wired for Corridor function type SPC-SEN. It is also available with a combined PIR and Constant Light sensor with integrated DALI Power supply type MPP-SEN or a slave PIR version type MPS-SEN.For more information see user manual for the respective sensor under “Download”.
Body material and colour
- Body in white painted steel. Plastic frame.
Mounting
- C70-R G2is well suitable for all 15 and 24mm T-bar ceilings. For other ceiling types, a mounting frame with brackets will be available as an accessory which will cover most of the known ceiling types in the market, as well asconcealed ceilings and plasterboard ceilings.
Driver
- HF or DALI. Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C.
Light Source
- LED 2200 - 4300 lumen outColour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
Optic
- Micro prismatic (MP) orOpalic (OP).
Accessories
- Amounting frame with brackets will be available as an accessory which will cover most of the known ceiling types in the market, as well asconcealed ceilings and plasterboard ceilings.
