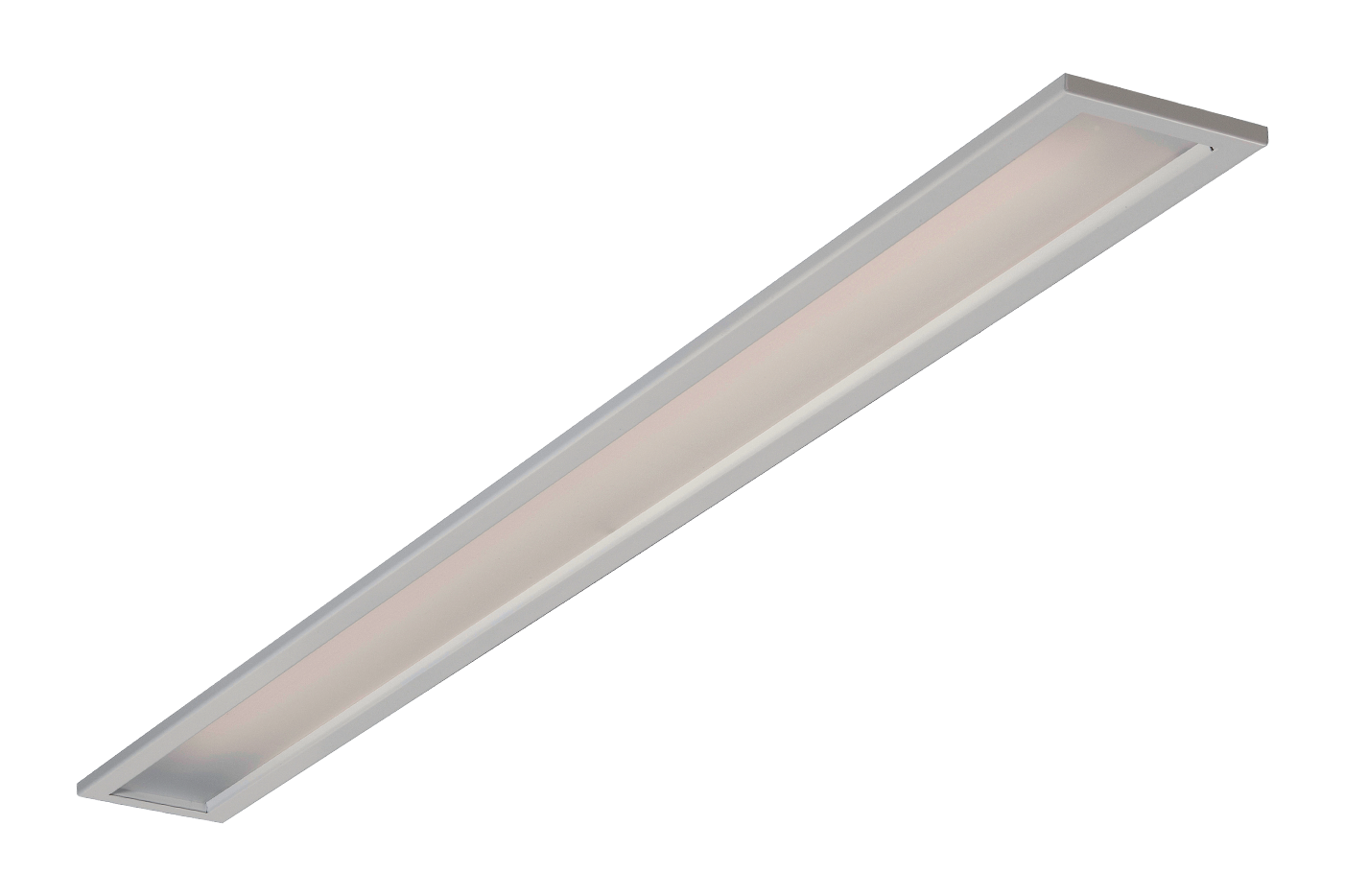

Modul-R100
Versitale luminaire for recessed solutions
Description
Modul is a series of recessed luminaires that combines functionality, performance and design. These are low glare luminaires with high efficiency and shallow recess depth, which make them well suited for installation in ceilings with little head room.
Lines of light in the ceiling
Modul-R100 is a narrow 96mm luminaire which is offered in three different lengths. Mounting two or more luminaires end to end will create lines of light in the ceiling. Modul-R100 is available with opal acrylic diffuser or microprismatic optics.
Dimming is optional.
Technical specifications
Optic
- Opal diffuser type OP or microprismatic diffuser MP.
Light Source
- LED 1200 - 4400 lument outColour temperature3000/4000 K, CRI 80, MacAdams 3
Emergency system
- Emergency light type standard (S), Selftest (ST) and addressable DALI (DALI).
Driver
- Electronic ballast (HF),or DALI.Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C.
Body material and colour
- White steel body.
Mounting
- For easy installation inexposed T-bar ceiling or in concealed ceilings by using mounting brackets that must be ordered separately.
Connection
- Cable entry from top. Can be supplied with cable or cable with plug. 3 or 5 pole push-in terminal block.
