O55-W
Slim LED floodlight
Description

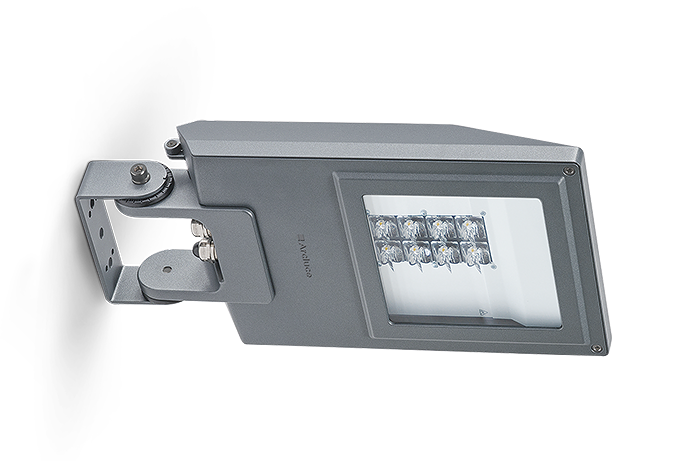

Glamox O55-W is a slim LED floodlight. Suitable for mounting on facades. The luminaire can also be mounted on pole with top diameter of 60 mm with accessory brackets. O55-W is manufactured with luminaire housing in die-cast aluminium. Double layer polyester powder coated paint finish. Available in three colours; black, anthracite or aluminium grey. Supplied with tempered safety glass covers. The luminaire has silicone gasket and screws are in stainless steel.
Technical specifications
Optic
- Medium beam (MB) and asymmetric (ASY).
Protection against surges
- Up to 6kV.
Wind exposed surface
- 0.11 m²
Driver
- Fixed output (HF) or DALI dimmable (10-100%).
Body material and colour
- Housing in die-cast aluminium. Double layer black (RAL 9005), anthracite (close to RAL 7024) or aluminium grey (RAL 9006) polyester powder coated paint finish. Tempered safety glass cover. Silicone gasket. Screws made of stainless steel.
Light Source
- LED 3000 - 8000 lumen out
Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3
RGBW on request
- LED 3000 - 8000 lumen out
Accessories
- Bracket and twin bracket for pole Ø60 mm.
Connection
- 2 x M20 cable glands (cable Ø8 - 12 mm).
3/5 pole 2.5 mm² push-in terminal block.
Outdoor use requires suitable flexible cables assuring the water tightness of the cable gland.
- 2 x M20 cable glands (cable Ø8 - 12 mm).
