FL70 LED
The Next Generation of Floodlights
Description
By using the latest COB LED technology and LED driver technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements. With its high lumen output the FL70 offers one of the best Lumen per Watt in the market. The product design has been undergoing thorough heat conduction and dissipation simulations, giving all components optimal conditions and ensuring long life time. Powder-coated an
odized seawater resistant aluminium housing.
DNV Certified
Technical specifications
Application
- FL70, LED Floodlight is designed for installation and use in safe areas. The product design has been undergoing thorough heat conduction and dissipation simulations, giving all components optimal conditions and ensuring long life time. By using the latest LED technology it offers a virtually maintenance-free solution for all high and medium intensity lighting requirements. The product design has been undergoing thorough heat conduction and dissipation simulations, giving all components optimal conditions and ensuring long life time.
Housing
- Finish: Black Powder coated Cover sheet: Seawater resistant anodized aluminium / black Diffuser: Safety glass clear Finish: Black Powder coated Junction Box in GRP
Beam angle
- SB 18 - XNB 27 - XNB 39 - NB 60 - MB 80 - WB 100 - XWB 120
Light Source
- COB LEDs Light colour: 5000K
Temperature range
- -35 °C / +55 °C
Operating voltages
- 220-254V AC - 50/60 Hz Power consumption: 183W (per module) System energy: 147,5 lm/W Lumen out: 27000 lumen for the one module version, 54000 lumen for the two module version Inrush current: none for > 100μs
Others
- Protection grade: IP 66/67 Operation voltages: 220-254V AC - 50/60 Hz Power factor: 0.9 Connection: Junction box or 5m flying lead. Junction box: GRP / Grey. UV resistant, seawater resistant and vibration proofed.
Mounting
- Mounted by stainless steel bracket 316L
Cable entry
- 2xM25x1.5 brass nickel plated D9-17mm Comes with reducer insert ( 7-12 mm )
Weight

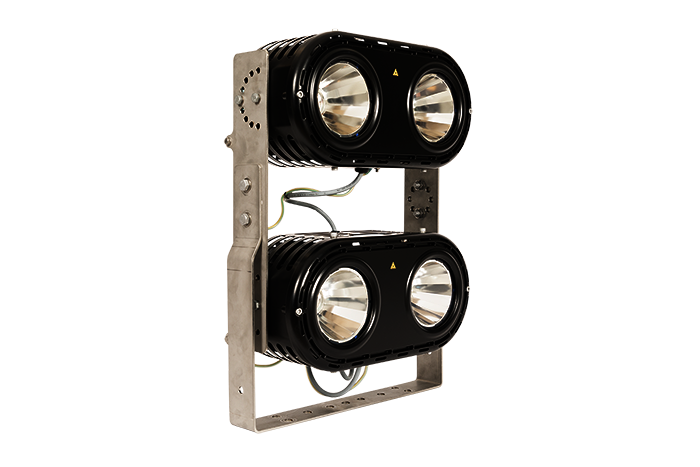

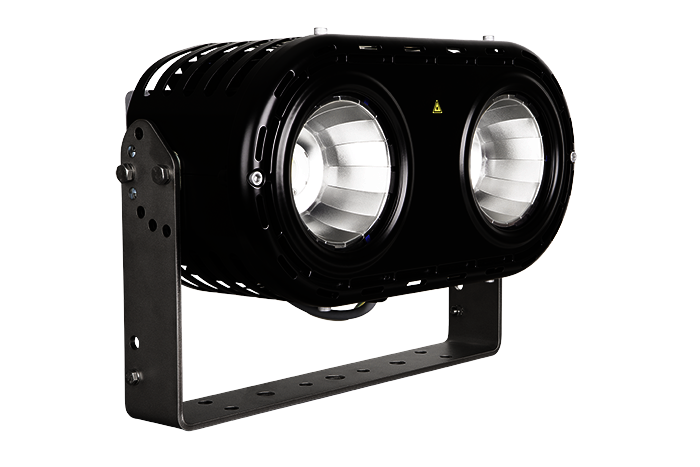

- 9 kg - FL70 FL (1 module with Flying Lead - 5 Meter) 10 Kg - FL70 JB ( 1 module with Junction Box ) 19,8 Kg - FL70 54 000 JB ( 2 module with junction box )
