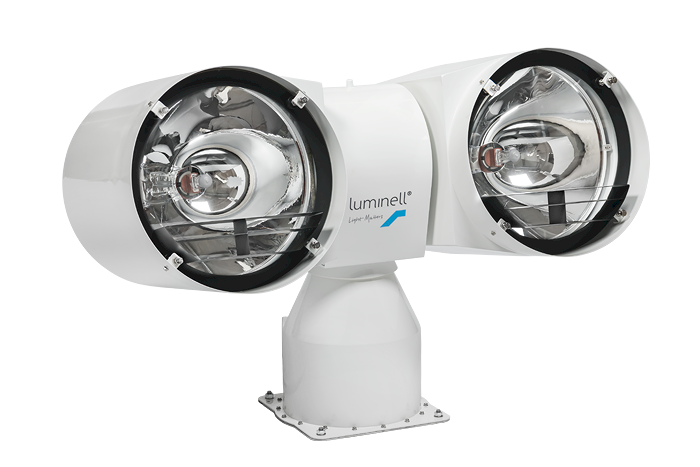

CL38 HMI Searchlight

The product family CL38 is our most powerful searchlight that is based on HMI light technology. It shares the measurements with the CL35 but with 30% more light power. The CL38 is available in standing or in hanging version and with optional integrated IR thermal camera. The unlimited movement functionality offers limitless operational freedom and superior sea area coverage. In combination with the intelligent Luminell 3G control system it can be connected in a system with all the variants of SL2 and CL25/35/38 models and possible to control many searchlights and control panels in a network. The system is also open to be integrated with other systems onboard. In combination with the special designed parabolic reflector this searchlight gives an extraordinary useful light performance that is ensured throughout the life of the bulb. The high color temperature in combination with the high color spectra (CRI) gives an impression of clear daylight with good contrasts of objects. It is very energy efficient providing a massive 130000 Lumen at only 1600W. The proven design and mechanical concept is very solid and all mechanical structure is embedded inside the housing. This reduces problems coming from external influences like ice or corrosion. The housing itself is made in acid proof stainless steel and withstand the extreme tough marine environment. The concept is developed over 20 years and is highly appreciated among mariners all over the world. - A proven robust and functional design - Marine resistant materials of highest class - Maintenance free, monitored electrical motors. - Unlimited maneuverability for superior sea area coverage - Superior operator control system with system feedback - Language selections in display - Energy Efficient - Extremely powerful HMI - Massive Lumen output - 1 lux at 6100 m - 130 000 Lm - Wide focus range - FiFi regulation compliance - Standing or hanging version available - Optional with Integrated IR thermal camera - Ready for integration
