TL50
Innovative watertight LED luminaire
Description
The innovative LED outdoor lighting fixtures are applicable for a wide range of different areas, e.g. workshops, stores, passage ways etc. They are designed to meet maritime requirements and to save energy and maintenance cost due to extreme long lifetime.
The combination of material and design assures a excellent heat management and therefor a long lifetime.
Technical specifications
Housing
- Seawater resistant, anodized aluminium housing
Lightsource/Optic
- Designed in two length with 2200 or 4500 lumen output from thefixture, Led's arecovered byopalic polycarbonate diffuser
Electrical specification
- Flexible wiring heat resistant up to 105°C Versions for emergency with 3 hours battery backup (Ta40°C) available
Mounting

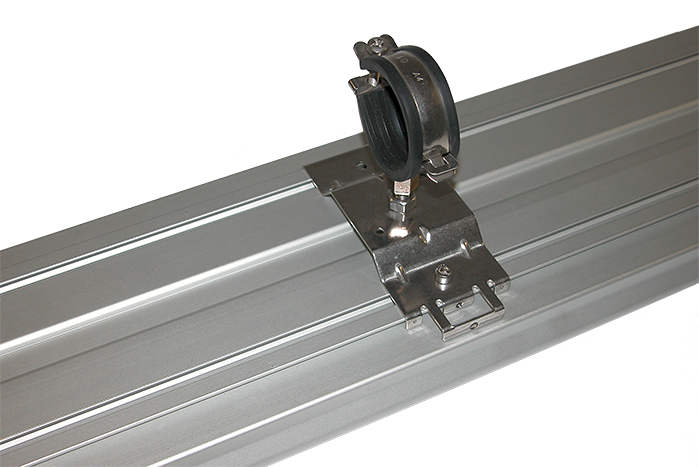

- Mounted to the ceiling or cable trays by: screws, different screwed mounting brackets, shock mounts or triangles are available.
Application
- For areas like car decks, open decks,and other demanding applications such as extreme weather conditions at sea
Design
- According to rules of maritime classification societies, additional VDE and IEC/EN
Ambient temperature (Ta)
- Operation from -25ºC up to +45ºC in standard version
Finish
- Grey anodized
Connection
- Connection box with cable entry 2xM25x1.5 polyamide D7-17mm and blind plugs 2xM25x1.5 polyamide Terminal 3-pole/4 mm²
Remarks
- ES = grounding with earth sheet ET = grounding with earth tag
